EPC2302

In Stock: 8,945

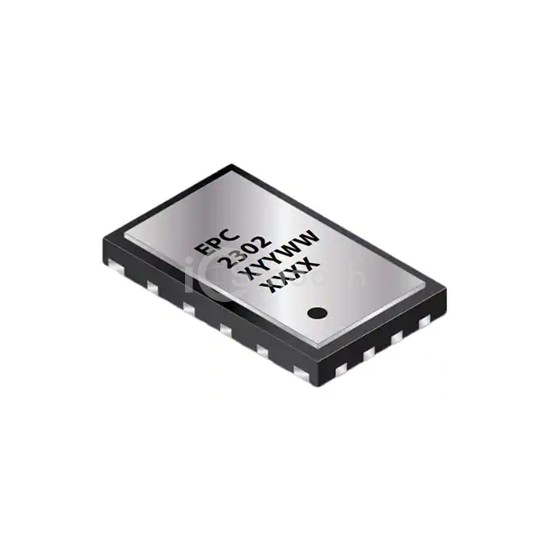

EPC2302 - EPC - Transistors - FETs, MOSFETs - Single
REF: EPC2302 EPC
EPC2302

EPC

TRANS GAN 100V DIE .0019OHM

EPC2302 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. TRANS GAN 100V DIE .0019OHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 7-PowerWQFN.

Datasheet Request a Quote

In Stock: 8,945

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C101A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs1.8mOhm @ 50A, 5V
Vgs(th) (Max) @ Id2.5V @ 14mA
Gate Charge (Qg) (Max) @ Vgs23 nC @ 5 V
Vgs (Max)+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds3200 pF @ 50 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package7-QFN (3x5)
Package / Case7-PowerWQFN
