EPC2218

In Stock: 67,962

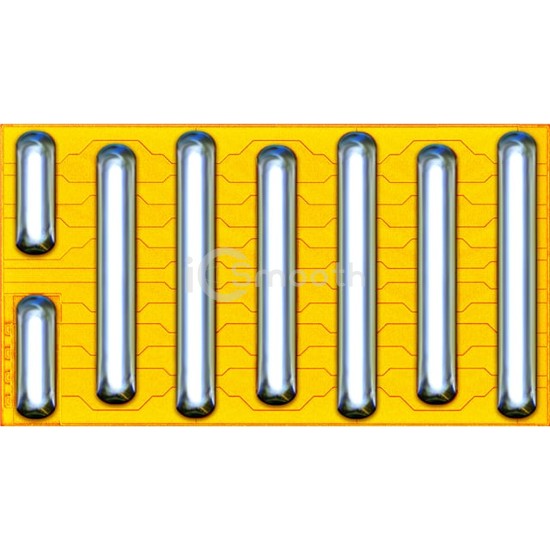

EPC2218 - EPC - Transistors - FETs, MOSFETs - Single
REF: EPC2218 EPC
EPC2218

EPC

GANFET N-CH 100V DIE

EPC2218 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GANFET N-CH 100V DIE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Request a Quote

In Stock: 67,962

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs3.2mOhm @ 25A, 5V
Vgs(th) (Max) @ Id2.5V @ 7mA
Gate Charge (Qg) (Max) @ Vgs16.3 nC @ 5 V
Vgs (Max)+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds2703 pF @ 50 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDie
Package / CaseDie
