EPC2035

In Stock: 8,624
EPC2035 - EPC - Transistors - FETs, MOSFETs - Single
REF: EPC2035 EPC

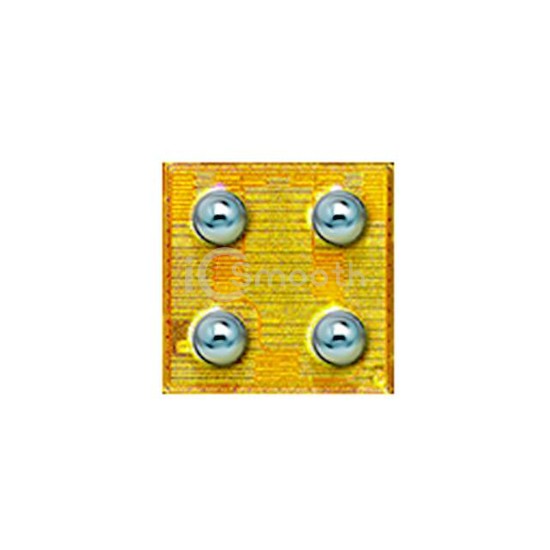

EPC2035

EPC

GANFET N-CH 60V 1.7A DIE

EPC2035 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GANFET N-CH 60V 1.7A DIE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 8,624

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs45mOhm @ 1A, 5V
Vgs(th) (Max) @ Id2.5V @ 800µA
Gate Charge (Qg) (Max) @ Vgs1.15 nC @ 5 V
Vgs (Max)+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds115 pF @ 30 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDie
Package / CaseDie
