EPC2024

In Stock: 5,036

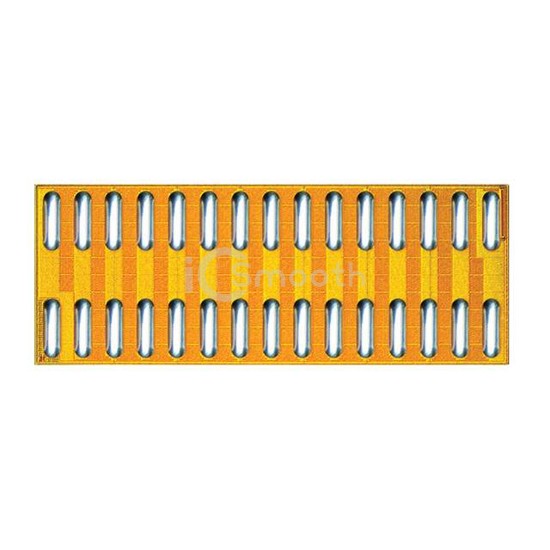

EPC2024 - EPC - Transistors - FETs, MOSFETs - Single
REF: EPC2024 EPC
EPC2024

EPC

GANFET NCH 40V 60A DIE

EPC2024 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GANFET NCH 40V 60A DIE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 5,036

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C90A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs1.5mOhm @ 37A, 5V
Vgs(th) (Max) @ Id2.5V @ 19mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds2100 pF @ 20 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDie
Package / CaseDie
