EPC2022

In Stock: 9,381
EPC2022 - EPC - Transistors - FETs, MOSFETs - Single
REF: EPC2022 EPC

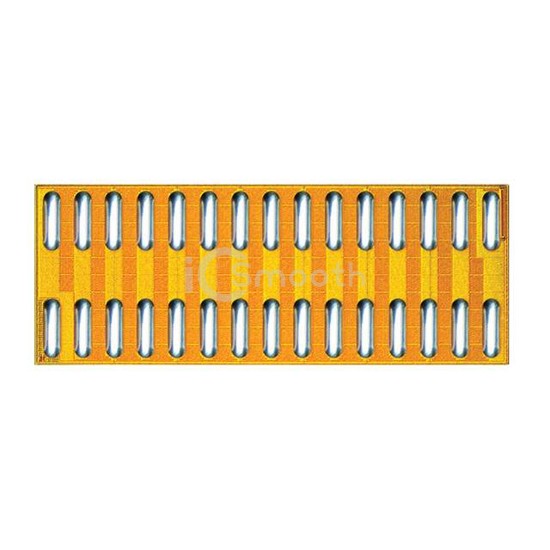

EPC2022

EPC

GANFET N-CH 100V 90A DIE

EPC2022 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GANFET N-CH 100V 90A DIE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 9,381

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C90A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs3.2mOhm @ 25A, 5V
Vgs(th) (Max) @ Id2.5V @ 12mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds1500 pF @ 50 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDie
Package / CaseDie
