Name: EPC2021ENGR
Brand: EPC
SKU: EPC2021ENGR
Availability: InStock

REF: EPC2021ENGR EPC

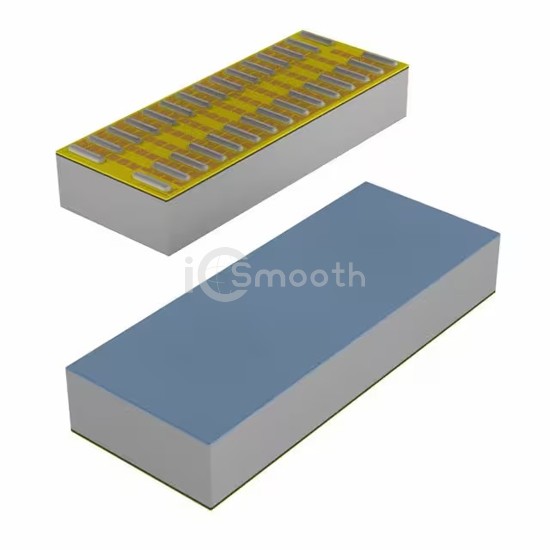

EPC2021ENGR

TRANS GAN 80V 60A BUMPED DIE

EPC2021ENGR is a Transistors - FETs, MOSFETs - Single manufactured by EPC. TRANS GAN 80V 60A BUMPED DIE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 7,260

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 29A, 5V
Vgs(th) (Max) @ Id	2.5V @ 14mA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 5 V

Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	1700 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die
