Name: EPC2016
Brand: EPC
SKU: EPC2016
Availability: InStock

REF: EPC2016 EPC

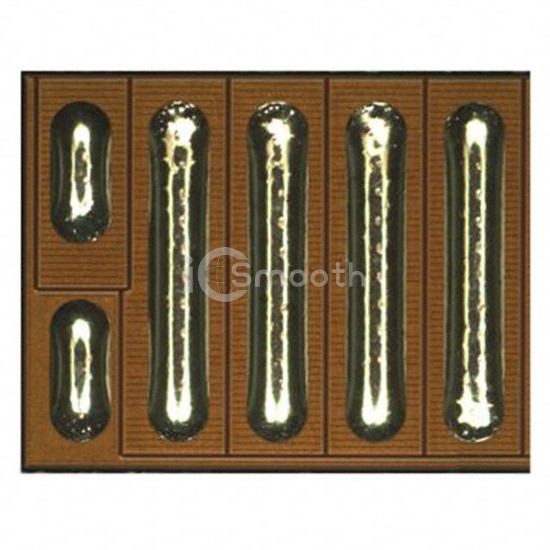

EPC2016

GANFET N-CH 100V 11A DIE

EPC2016 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GANFET N-CH 100V 11A DIE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 3,992

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	16mOhm @ 11A, 5V
Vgs(th) (Max) @ Id	2.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs	5.2 nC @ 5 V

Vgs (Max)	+6V, -5V
Input Capacitance (Ciss) (Max) @ Vds	520 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die
