Name: EPC2014C
Brand: EPC
SKU: EPC2014C
Price: 1.60 USD
Availability: InStock

REF: EPC2014C EPC

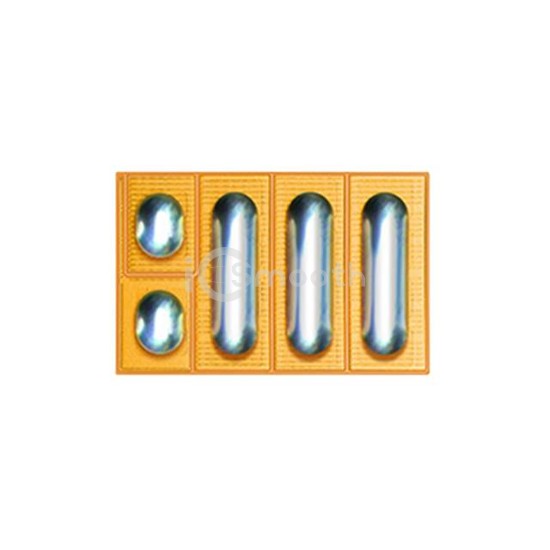

EPC2014C

GANFET N-CH 40V 10A DIE OUTLINE

EPC2014C is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GANFET N-CH 40V 10A DIE OUTLINE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case Die.

Datasheet Request a Quote

In Stock: 110,043

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	16mOhm @ 10A, 5V
Vgs(th) (Max) @ Id	2.5V @ 2mA
Gate Charge (Qg) (Max) @ Vgs	2.5 nC @ 5 V

Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	300 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die Outline (5-Solder Bar)
Package / Case	Die
