GANFET N-CH 100V 25A DIE OUTLINE

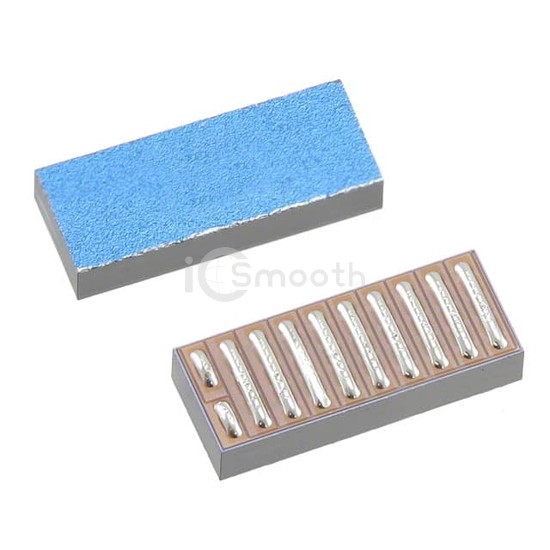

EPC2001 is a Transistors - FETs, MOSFETs - Single manufactured by EPC. GANFET N-CH 100V 25A DIE OUTLINE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case Die.
In Stock: 7,232
| Product Status | Discontinued at Digi-Key |
|---|---|
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 25A, 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 5 V |
| Vgs (Max) | +6V, -5V |
|---|---|
| Input Capacitance (Ciss) (Max) @ Vds | 950 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Die Outline (11-Solder Bar) |
| Package / Case | Die |
