Name: FBG10N05AC
Brand: EPC Space, LLC
SKU: FBG10N05AC
Price: 313.40 USD
Availability: InStock

REF: FBG10N05AC EPC Space, LLC

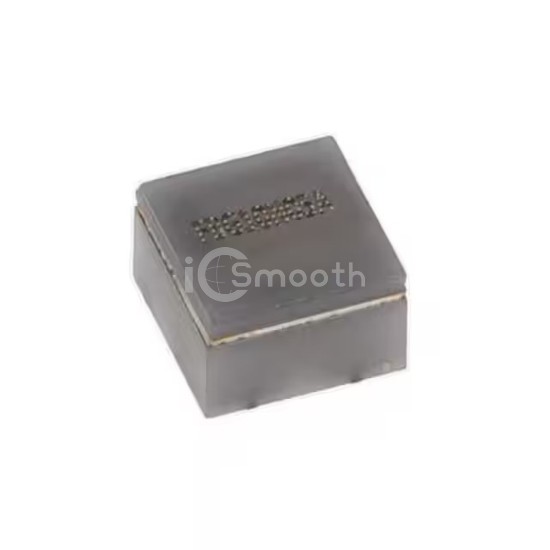

FBG10N05AC

GAN FET HEMT 100V5A COTS 4FSMD-A

FBG10N05AC is a Transistors - FETs, MOSFETs - Single manufactured by EPC Space, LLC. GAN FET HEMT 100V5A COTS 4FSMD-A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, No Lead.

Datasheet Request a Quote

In Stock: 68

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	44mOhm @ 5A, 5V
Vgs(th) (Max) @ Id	2.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs	2.2 nC @ 5 V

Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	233 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-SMD
Package / Case	4-SMD, No Lead
