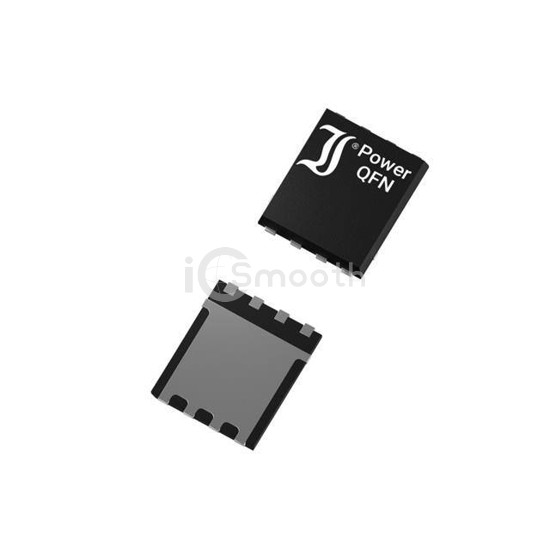

DI070P04PQ

In Stock: 3,189
DI070P04PQ - Diotec Semiconductor - Transistors - FETs, MOSFETs - Single
REF: DI070P04PQ Diotec Semiconductor
DI070P04PQ

Diotec Semiconductor

MOSFET 40V 70A P 46W

DI070P04PQ is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET 40V 70A P 46W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 3,189

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs125 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7560 pF @ 20 V
FET Feature-
Power Dissipation (Max)46W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-QFN (5x6)
Package / Case8-PowerTDFN
