Name: DI050N06D1
Brand: Diotec Semiconductor
SKU: DI050N06D1
Price: 1.97 USD
Availability: InStock

REF: DI050N06D1 Diotec Semiconductor

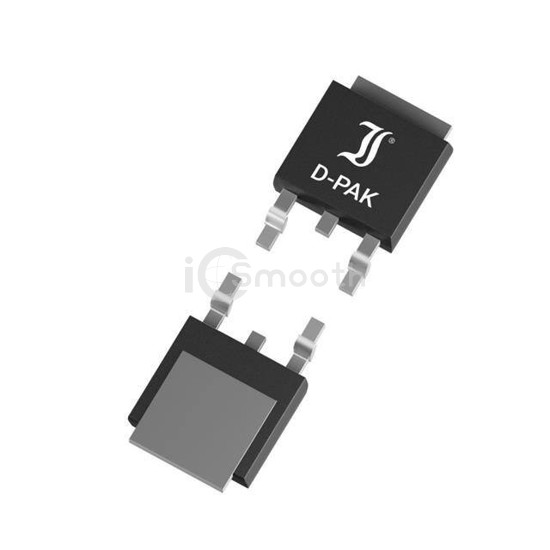

DI050N06D1

MOSFET, 60V, 50A, N, 42W

DI050N06D1 is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, 60V, 50A, N, 42W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 4,014

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	65 V
Current - Continuous Drain (Id) @ 25°C	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	11mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	825 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	42W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252-3 (DPAK)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
