DI045N03PT-AQ

In Stock: 1,195

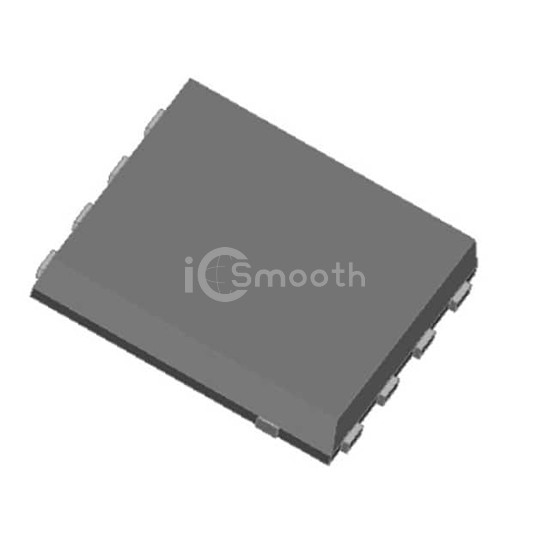

DI045N03PT-AQ - Diotec Semiconductor - Transistors - FETs, MOSFETs - Single
REF: DI045N03PT-AQ Diotec Semiconductor
DI045N03PT-AQ

Diotec Semiconductor

MOSFET, 30V, 45A, 16W

DI045N03PT-AQ is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, 30V, 45A, 16W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 1,195

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs4.4mOhm @ 24A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs53 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2300 pF @ 15 V
FET Feature-
Power Dissipation (Max)16W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-QFN (3x3)
Package / Case8-PowerWDFN
