Name: DI045N03PT
Brand: Diotec Semiconductor
SKU: DI045N03PT
Price: 0.93 USD
Availability: InStock

REF: DI045N03PT Diotec Semiconductor

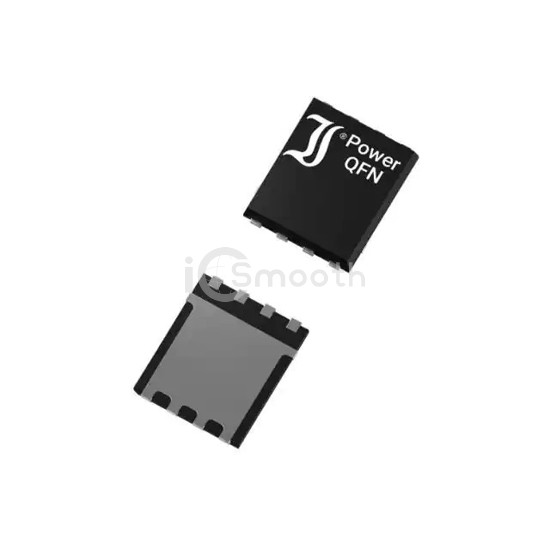

DI045N03PT

MOSFET, 30V, 45A, 16W

DI045N03PT is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, 30V, 45A, 16W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 5,001

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.4mOhm @ 24A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	53 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2300 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	16W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-QFN (3x3)
Package / Case	8-PowerWDFN
