Name: DI040P04D1-AQ
Brand: Diotec Semiconductor
SKU: DI040P04D1-AQ
Price: 4.66 USD
Availability: InStock

REF: DI040P04D1-AQ Diotec Semiconductor

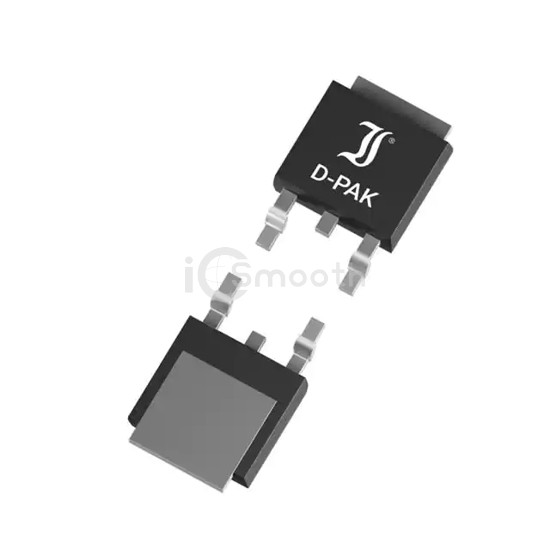

DI040P04D1-AQ

Diotec Semiconductor

MOSFET -40V -40A P 52W

DI040P04D1-AQ is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET -40V -40A P 52W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 5,005

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	59 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3538 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	52W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252-3 (DPAK)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
