Name: DI028P03PT
Brand: Diotec Semiconductor
SKU: DI028P03PT
Price: 3.26 USD
Availability: InStock

REF: DI028P03PT Diotec Semiconductor

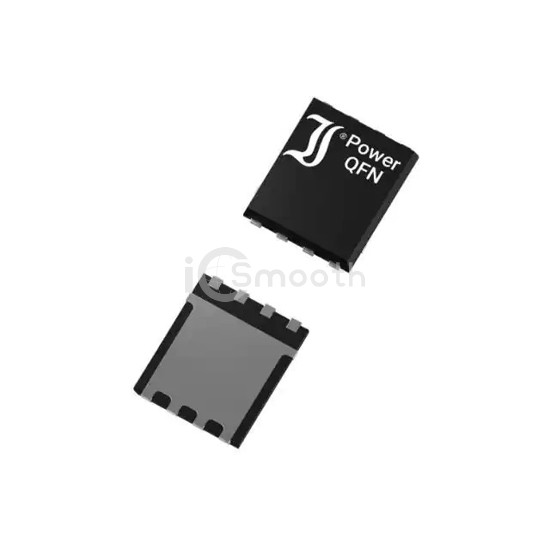

DI028P03PT

MOSFET, -30V, -28A, 40W

DI028P03PT is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, -30V, -28A, 40W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 2,818

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	28A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2060 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	40W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-QFN (3x3)
Package / Case	8-PowerWDFN
