DI010N03PW

In Stock: 8,150

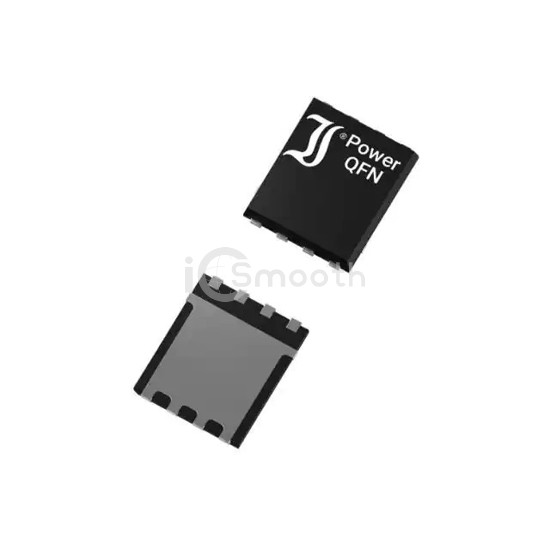

DI010N03PW - Diotec Semiconductor - Transistors - FETs, MOSFETs - Single
REF: DI010N03PW Diotec Semiconductor
DI010N03PW

Diotec Semiconductor

MOSFET, 30V, 10A, N, 1.4W

DI010N03PW is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, 30V, 10A, N, 1.4W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerUDFN.

Datasheet Request a Quote

In Stock: 8,150

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs12mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1120 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.4W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-QFN (2x2)
Package / Case8-PowerUDFN
