DI006P02PW

In Stock: 8,071

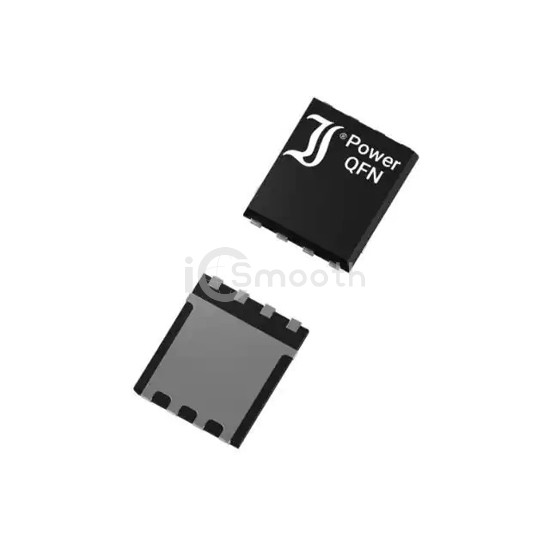

DI006P02PW - Diotec Semiconductor - Transistors - FETs, MOSFETs - Single
REF: DI006P02PW Diotec Semiconductor
DI006P02PW

Diotec Semiconductor

MOSFET, -20V, -6A, P, 2W

DI006P02PW is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, -20V, -6A, P, 2W. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerUDFN.

Datasheet Request a Quote

In Stock: 8,071

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs25mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1242 pF @ 10 V
FET Feature-
Power Dissipation (Max)2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-QFN (2x2)
Package / Case8-PowerUDFN
