CS40D

In Stock: 1,000

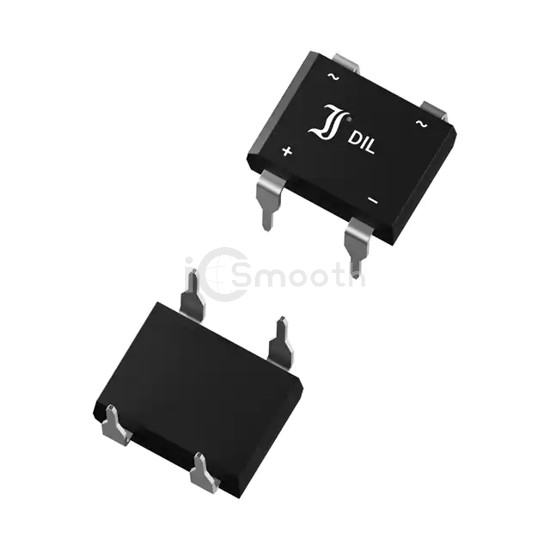

CS40D - Diotec Semiconductor - Diodes - Bridge Rectifiers
REF: CS40D Diotec Semiconductor
CS40D

Diotec Semiconductor

1PH BRIDGE DIL 80V 1A

CS40D is a Diodes - Bridge Rectifiers manufactured by Diotec Semiconductor. 1PH BRIDGE DIL 80V 1A. Key specifications: mounting type Through Hole, operating temperature -50°C ~ 150°C (TJ), package / case 4-EDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,000

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologySchottky
Voltage - Peak Reverse (Max)80 V
Current - Average Rectified (Io)1 A
Voltage - Forward (Vf) (Max) @ If790 mV @ 1 A
Current - Reverse Leakage @ Vr500 µA @ 80 V
Operating Temperature-50°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case4-EDIP (0.300", 7.62mm)
Supplier Device PackageDFM
