Name: 2N7002W
Brand: Diotec Semiconductor
SKU: 2N7002W
Price: 0.05 USD
Availability: InStock

REF: 2N7002W Diotec Semiconductor

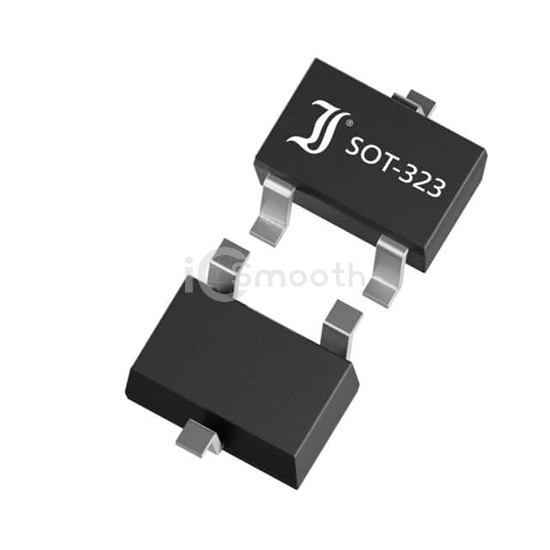

2N7002W

MOSFET, SOT-323, 60V, 0.115A, N,

2N7002W is a Transistors - FETs, MOSFETs - Single manufactured by Diotec Semiconductor. MOSFET, SOT-323, 60V, 0.115A, N,. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 2,504

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	115mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	13.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	200mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-323
Package / Case	SC-70, SOT-323
