Name: ZXMS6004DN8Q-13
Brand: Diodes Incorporated
SKU: ZXMS6004DN8Q-13
Price: 0.75 USD
Availability: InStock

REF: ZXMS6004DN8Q-13 Diodes Incorporated

ZXMS6004DN8Q-13

Diodes Incorporated

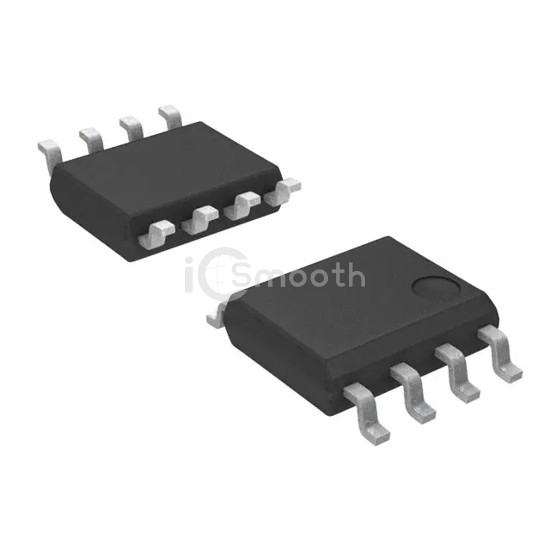

IC PWR DRIVER N-CHAN 1:1 8SOIC

ZXMS6004DN8Q-13 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR DRIVER N-CHAN 1:1 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 3.3V, 5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,220

Tiered Pricing USD

1+ $0.7500 —

10+ $0.5330 -29%

25+ $0.4788 -36%

100+ $0.4194 -44%

250+ $0.3910 -48%

500+ $0.3740 -50%

1,000+ $0.3599 -52% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	60V (Max)
Voltage - Supply (Vcc/Vdd)	3.3V, 5V

Current - Output (Max)	1.3A
Rds On (Typ)	350mOhm
Input Type	Non-Inverting
Features	Auto Restart
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)
