SBR05M100BLP-7

In Stock: 7,210

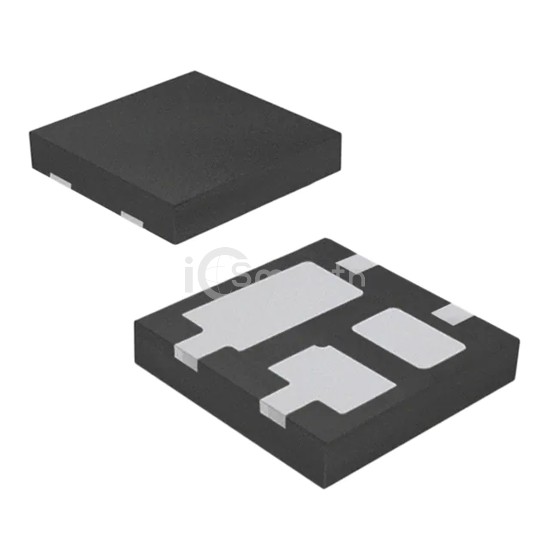

SBR05M100BLP-7 - Diodes Incorporated - Diodes - Bridge Rectifiers
REF: SBR05M100BLP-7 Diodes Incorporated
SBR05M100BLP-7

Diodes Incorporated

BRIDGE RECT 1P 100V DFN3030

SBR05M100BLP-7 is a Diodes - Bridge Rectifiers manufactured by Diodes Incorporated. BRIDGE RECT 1P 100V DFN3030. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-PowerUDFN.

Datasheet Request a Quote

In Stock: 7,210

Tiered Pricing USD
1+ $0.4600 —
10+ $0.3820 -17%
100+ $0.3533 -23% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologySuper Barrier
Voltage - Peak Reverse (Max)100 V
Current - Average Rectified (Io)500 mA
Voltage - Forward (Vf) (Max) @ If630 mV @ 500 mA
Current - Reverse Leakage @ Vr25 µA @ 100 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-PowerUDFN
Supplier Device PackageU-DFN3030-4
