Name: PS323CUAEX
Brand: Diodes Incorporated
SKU: PS323CUAEX
Price: 0.83 USD
Availability: InStock

REF: PS323CUAEX Diodes Incorporated

PS323CUAEX

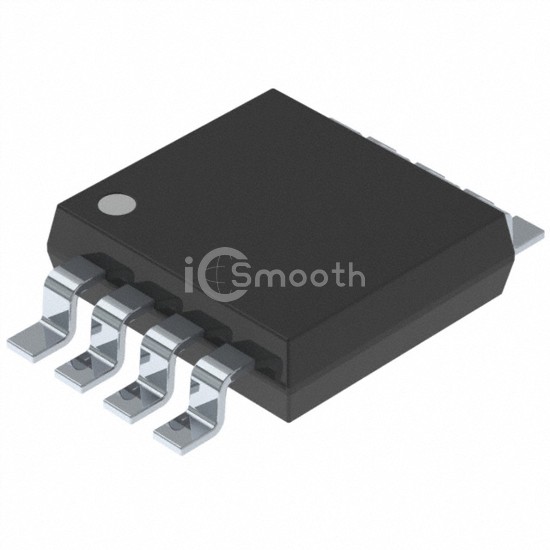

IC ANLG SW SPST DUAL NO 8-MSOP

PS323CUAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC ANLG SW SPST DUAL NO 8-MSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 1,238

Tiered Pricing USD

4,000+ $0.8314 —

8,000+ $0.7911 -5%

12,000+ $0.7750 -7% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	35Ohm
Channel-to-Channel Matching (ΔRon)	800mOhm
Voltage - Supply, Single (V+)	2.5V ~ 16 V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	75ns, 50ns

-3db Bandwidth	-
Charge Injection	1pC
Channel Capacitance (CS(off), CD(off))	9pF, 9pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-85dB @ 1MHz
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package	8-MSOP
