Name: PS320CUAEX
Brand: Diodes Incorporated
SKU: PS320CUAEX
Availability: InStock

REF: PS320CUAEX Diodes Incorporated

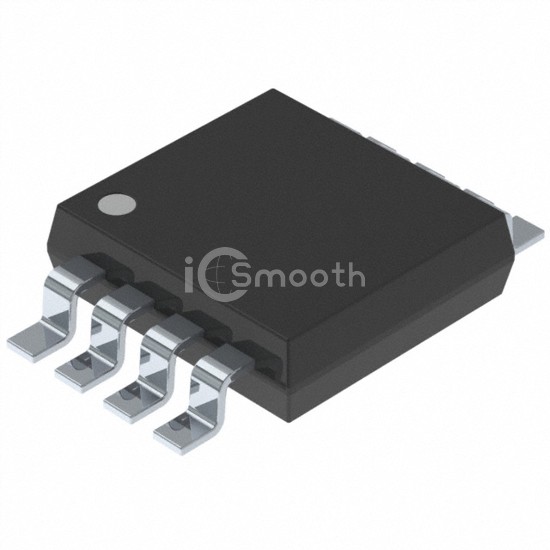

PS320CUAEX

IC SWITCH DUAL SPST MSOP

PS320CUAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPST MSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 3,144

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	35Ohm
Channel-to-Channel Matching (ΔRon)	300mOhm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±2.7V ~ 8V
Switch Time (Ton, Toff) (Max)	150ns, 100ns

-3db Bandwidth	-
Charge Injection	8pC
Channel Capacitance (CS(off), CD(off))	9pF, 9pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-85dB @ 1MHz
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package	8-MSOP
