Name: PI5USB2549WAEX
Brand: Diodes Incorporated
SKU: PI5USB2549WAEX
Price: 0.41 USD
Availability: InStock

REF: PI5USB2549WAEX Diodes Incorporated

PI5USB2549WAEX

Diodes Incorporated

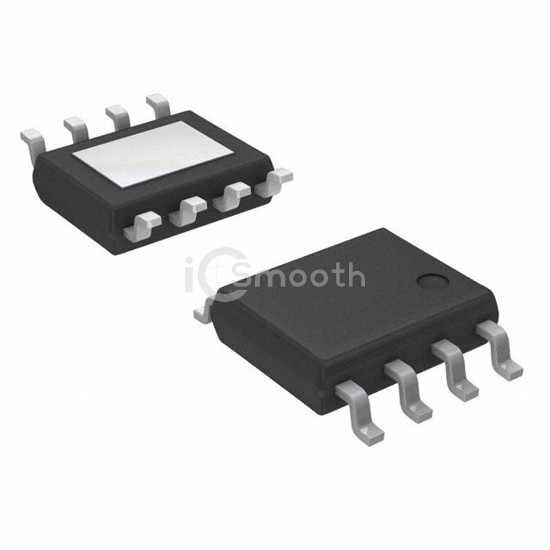

IC PWR SWITCH N-CHAN 1:1 8SOIC

PI5USB2549WAEX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - load 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 3,280

Tiered Pricing USD

3,000+ $0.4087 —

6,000+ $0.3832 -6%

9,000+ $0.3704 -9%

15,000+ $0.3560 -13%

21,000+ $0.3476 -15% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	-

Current - Output (Max)	2.5A
Rds On (Typ)	65mOhm
Input Type	-
Features	Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC-EP
Package / Case	8-SOIC (0.154", 3.90mm Width) Exposed Pad
