Name: PI5PD2561ZEEX
Brand: Diodes Incorporated
SKU: PI5PD2561ZEEX
Price: 0.75 USD
Availability: InStock

REF: PI5PD2561ZEEX Diodes Incorporated

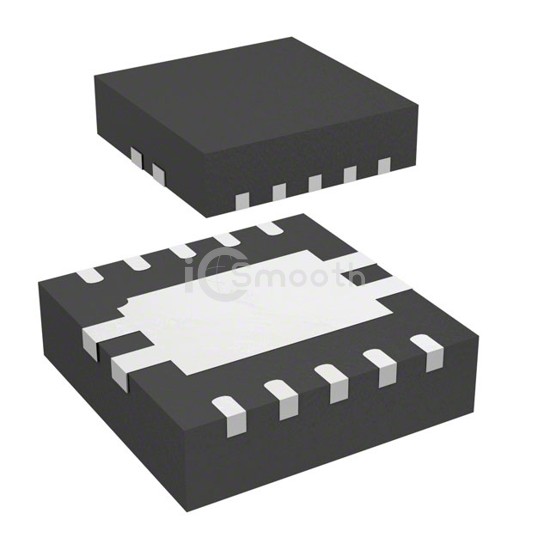

PI5PD2561ZEEX

Diodes Incorporated

IC PWR SWITCH N/P-CH 1:2 10TDFN

PI5PD2561ZEEX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N/P-CH 1:2 10TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.5V ~ 5.5V, package / case 10-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,772

Tiered Pricing USD

3,500+ $0.7499 —

7,000+ $0.7222 -4%

10,500+ $0.6944 -7% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	USB Switch
Number of Outputs	2
Ratio - Input:Output	1:2
Output Configuration	High Side
Output Type	N/P-Channel
Interface	On/Off
Voltage - Load	2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	2.5V ~ 5.5V

Current - Output (Max)	2.5A
Rds On (Typ)	44mOhm
Input Type	Non-Inverting
Features	Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	10-TDFN (3x3)
Package / Case	10-VFDFN Exposed Pad
