Name: PI5PD2065UEEX
Brand: Diodes Incorporated
SKU: PI5PD2065UEEX
Price: 0.25 USD
Availability: InStock

REF: PI5PD2065UEEX Diodes Incorporated

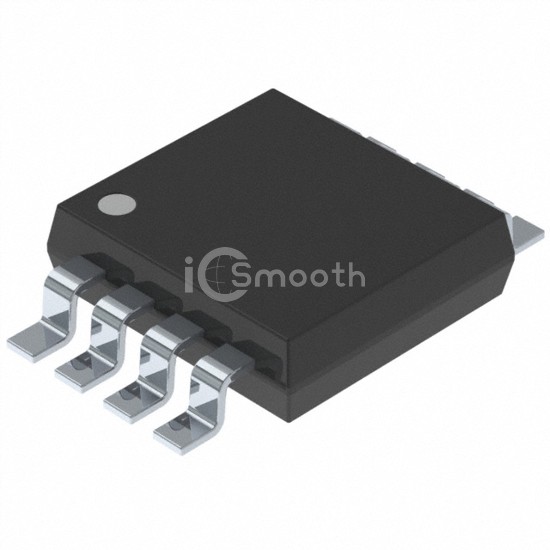

PI5PD2065UEEX

Diodes Incorporated

IC PWR SWITCH N-CHAN 1:1 8MSOP

PI5PD2065UEEX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 8,235

Tiered Pricing USD

2,500+ $0.2515 —

5,000+ $0.2332 -7%

7,500+ $0.2240 -11%

12,500+ $0.2137 -15%

17,500+ $0.2076 -17%

25,000+ $0.2018 -20% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1.5A
Rds On (Typ)	70mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-MSOP-EP
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
