Name: PI5A4684GAEX
Brand: Diodes Incorporated
SKU: PI5A4684GAEX
Availability: InStock

REF: PI5A4684GAEX Diodes Incorporated

PI5A4684GAEX

IC SWITCH DUAL SPDT 10CSP

PI5A4684GAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 10CSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-WFBGA, CSPBGA, number of circuits 2.

Datasheet Request a Quote

In Stock: 2,936

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	600mOhm
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	60ns, 20ns

-3db Bandwidth	27MHz
Charge Injection	54pC
Channel Capacitance (CS(off), CD(off))	84pF
Current - Leakage (IS(off)) (Max)	80nA
Crosstalk	-70dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

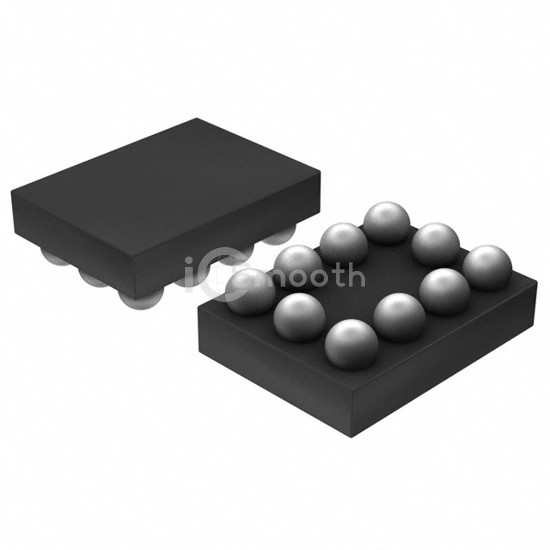

Package / Case	10-WFBGA, CSPBGA
Supplier Device Package	10-CSP (2.07x1.55)
