Name: PI5A4213GAEX
Brand: Diodes Incorporated
SKU: PI5A4213GAEX
Price: 0.71 USD
Availability: InStock

REF: PI5A4213GAEX Diodes Incorporated

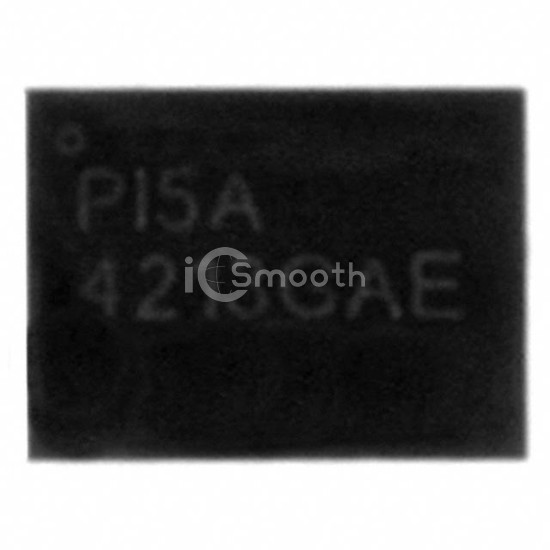

PI5A4213GAEX

Diodes Incorporated

IC SWITCH DUAL SP3T 12CSP

PI5A4213GAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SP3T 12CSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFBGA, WLCSP, number of circuits 2.

Datasheet Request a Quote

In Stock: 9,949

Tiered Pricing USD

3,000+ $0.7148 —

6,000+ $0.6763 -5%

9,000+ $0.6569 -8%

15,000+ $0.6375 -11% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SP3T
Multiplexer/Demultiplexer Circuit	3:1
Number of Circuits	2
On-State Resistance (Max)	2Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm (Max)
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	15ns, 12ns

-3db Bandwidth	30MHz
Charge Injection	35pC
Channel Capacitance (CS(off), CD(off))	50pF
Current - Leakage (IS(off)) (Max)	80nA
Crosstalk	-72dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFBGA, WLCSP
Supplier Device Package	12-CSP (2.0x1.5)
