Name: PI5A3158BZAEX
Brand: Diodes Incorporated
SKU: PI5A3158BZAEX
Availability: InStock

REF: PI5A3158BZAEX Diodes Incorporated

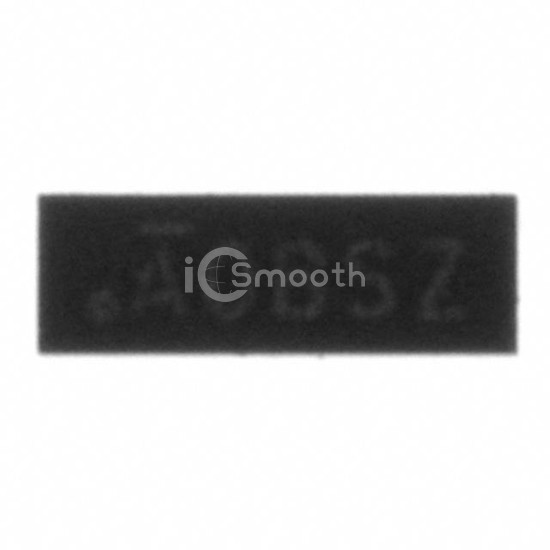

PI5A3158BZAEX

IC SWITCH DUAL SPDT 12TDFN

PI5A3158BZAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 12TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFDFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 9,692

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	11Ohm
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	350MHz
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	2.5pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFDFN
Supplier Device Package	12-TDFN (3x1)
