Name: PI5A3157BZUE+DMX
Brand: Diodes Incorporated
SKU: PI5A3157BZUE+DMX
Availability: InStock

REF: PI5A3157BZUE+DMX Diodes Incorporated

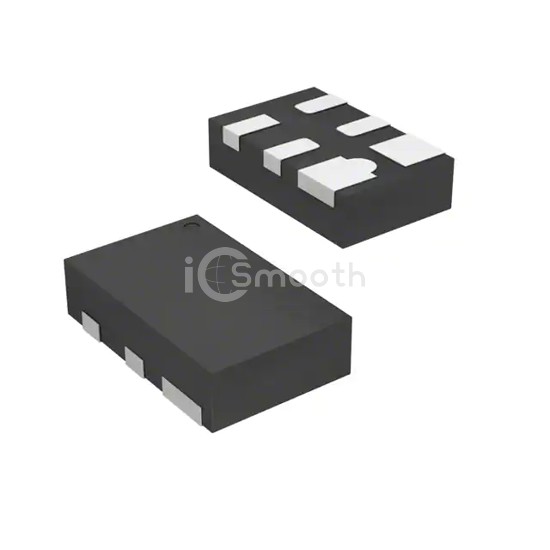

PI5A3157BZUE+DMX

IC SWITCH SPDT 6-UDFN

PI5A3157BZUE+DMX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH SPDT 6-UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 6,224

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	13Ohm
Channel-to-Channel Matching (ΔRon)	150mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5.2ns, 3.5ns

-3db Bandwidth	250MHz
Charge Injection	7pC
Channel Capacitance (CS(off), CD(off))	2.3pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-54dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN
Supplier Device Package	6-UDFN (1x1)
