Name: PI5A127UEX
Brand: Diodes Incorporated
SKU: PI5A127UEX
Price: 0.37 USD
Availability: InStock

REF: PI5A127UEX Diodes Incorporated

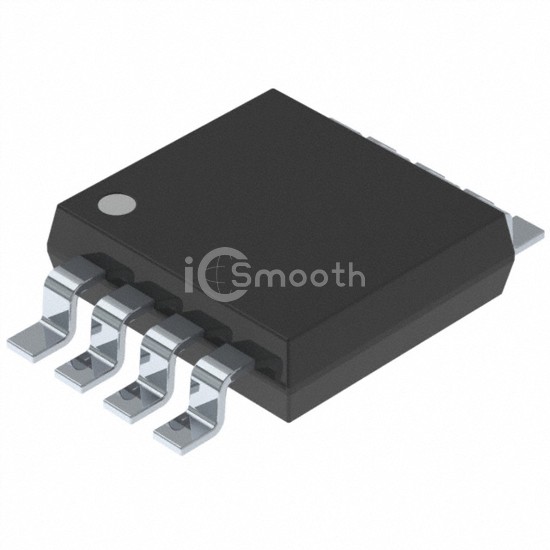

PI5A127UEX

IC ANALOG SWITCH SPST DUAL 8MSOP

PI5A127UEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC ANALOG SWITCH SPST DUAL 8MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 7,301

Tiered Pricing USD

4,000+ $0.3717 —

8,000+ $0.3492 -6%

12,000+ $0.3379 -9%

20,000+ $0.3253 -12%

28,000+ $0.3178 -14% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	200mOhm
Voltage - Supply, Single (V+)	2V ~ 6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	15ns, 7ns

-3db Bandwidth	326MHz
Charge Injection	1.6pC
Channel Capacitance (CS(off), CD(off))	5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max)	200pA (Typ)
Crosstalk	-43dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package	8-MSOP
