Name: PI3USB4000DQ1ZUAEX
Brand: Diodes Incorporated
SKU: PI3USB4000DQ1ZUAEX
Price: 1.42 USD
Availability: InStock

REF: PI3USB4000DQ1ZUAEX Diodes Incorporated

PI3USB4000DQ1ZUAEX

Diodes Incorporated

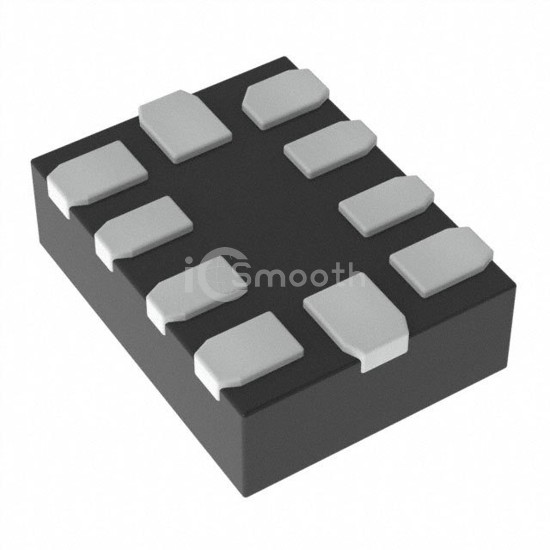

USB2 SWITCH U-QFN1520-10 T&R 3K

PI3USB4000DQ1ZUAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. USB2 SWITCH U-QFN1520-10 T&R 3K. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-UFQFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 33,455

Tiered Pricing USD

1+ $1.4200 —

10+ $1.0360 -27%

25+ $0.9392 -34%

100+ $0.8330 -41%

250+ $0.7824 -45%

500+ $0.7519 -47%

1,000+ $0.7268 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	2.7V ~ 5.5V
Voltage - Supply, Dual (V±)	2.7V ~ 5.5V
Switch Time (Ton, Toff) (Max)	100µs, 50ns

-3db Bandwidth	1GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-35dB @ 240MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.5x2)
