Name: PI3USB4000D
Brand: Diodes Incorporated
SKU: PI3USB4000D
Price: 1.57 USD
Availability: InStock

REF: PI3USB4000D Diodes Incorporated

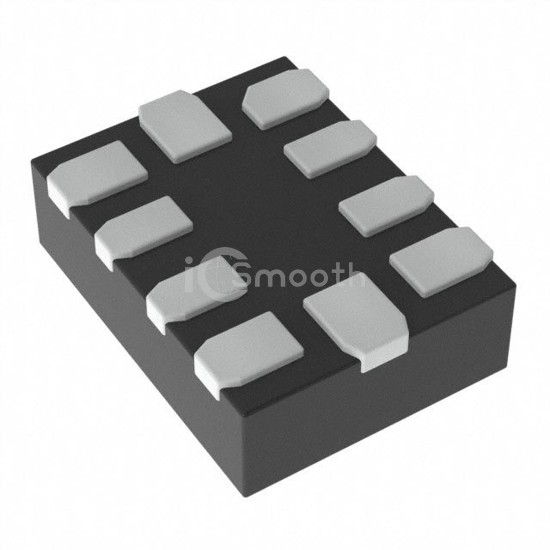

PI3USB4000D

USB2 SWITCH,U-QFN1520-10,T&R,3K

PI3USB4000D is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. USB2 SWITCH,U-QFN1520-10,T&R,3K. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-UFQFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 68

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	9Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm (Typ)
Voltage - Supply, Single (V+)	2.7V ~ 5.5V
Voltage - Supply, Dual (V±)	2.7V ~ 5.5V
Switch Time (Ton, Toff) (Max)	100µs, 50ns

-3db Bandwidth	1GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF, 9pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-35dB @ 240MHz
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.5x2)
