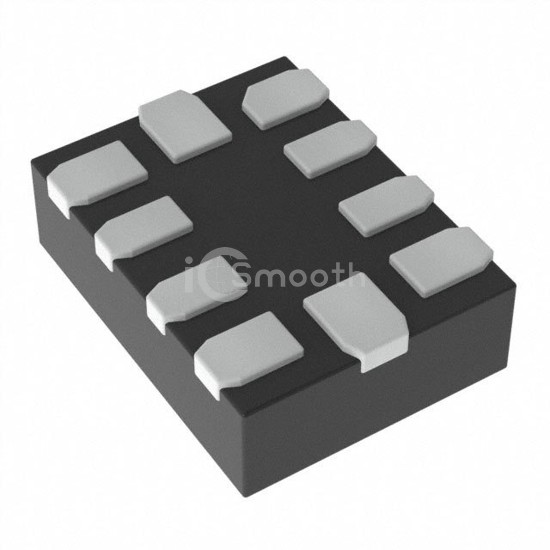

Name: PI3USB4000BZUAEX
Brand: Diodes Incorporated
SKU: PI3USB4000BZUAEX
Price: 0.70 USD
Availability: InStock

REF: PI3USB4000BZUAEX Diodes Incorporated

PI3USB4000BZUAEX

Diodes Incorporated

USB2 SWITCH U-QFN2015-10

PI3USB4000BZUAEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. USB2 SWITCH U-QFN2015-10. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 1,762

Tiered Pricing USD

3,000+ $0.7023 —

6,000+ $0.6644 -5%

9,000+ $0.6452 -8%

15,000+ $0.6250 -11% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	8Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	2.7V ~ 6V
Voltage - Supply, Dual (V±)	±2.7V ~ 6V
Switch Time (Ton, Toff) (Max)	100µs, 50ns (Typ)

-3db Bandwidth	1GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF, 9pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-35dB @ 240MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.5x2)
