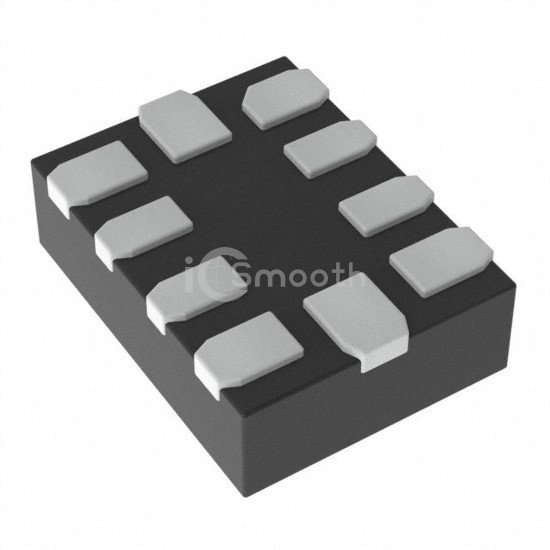

Name: PI3USB4000AZUAEX-37
Brand: Diodes Incorporated
SKU: PI3USB4000AZUAEX-37
Price: 0.63 USD
Availability: InStock

REF: PI3USB4000AZUAEX-37 Diodes Incorporated

PI3USB4000AZUAEX-37

Diodes Incorporated

USB2 SWITCH U-QFN2015-10 T&R 3K

PI3USB4000AZUAEX-37 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. USB2 SWITCH U-QFN2015-10 T&R 3K. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 3,829

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	1:2
Number of Circuits	1
On-State Resistance (Max)	8Ohm
Channel-to-Channel Matching (ΔRon)	500mOhm
Voltage - Supply, Single (V+)	2.7V ~ 6V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	100µs, 50ns (Typ)

-3db Bandwidth	1GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	7pF, 9pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-35dB @ 240MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.5x2)
