Name: PI3A412ZHEX
Brand: Diodes Incorporated
SKU: PI3A412ZHEX
Price: 1.29 USD
Availability: InStock

REF: PI3A412ZHEX Diodes Incorporated

PI3A412ZHEX

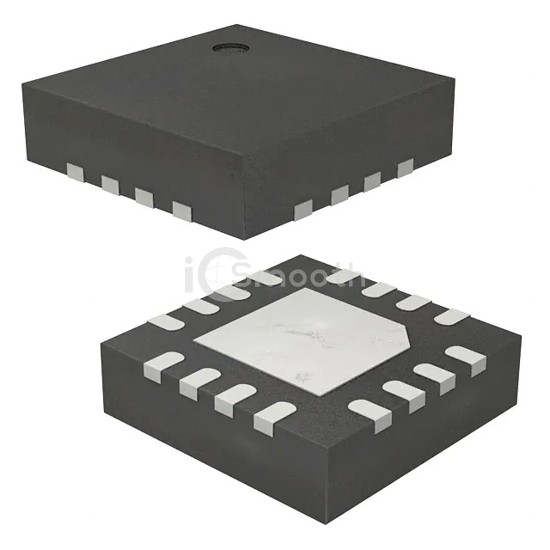

IC SWITCH QUAD SPDT 16TQFN

PI3A412ZHEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH QUAD SPDT 16TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 1,760

Tiered Pricing USD

1+ $1.2900 —

10+ $0.9400 -27%

25+ $0.8516 -34%

100+ $0.7540 -42%

250+ $0.7075 -45%

500+ $0.6794 -47%

1,000+ $0.6563 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm
Voltage - Supply, Single (V+)	1.8V ~ 4.2V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	13ns, 38ns

-3db Bandwidth	78MHz
Charge Injection	50pC
Channel Capacitance (CS(off), CD(off))	20pF, 20pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-97dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad
Supplier Device Package	16-TQFN (3x3)
