Name: PI3A3160ZGEX
Brand: Diodes Incorporated
SKU: PI3A3160ZGEX
Price: 0.84 USD
Availability: InStock

REF: PI3A3160ZGEX Diodes Incorporated

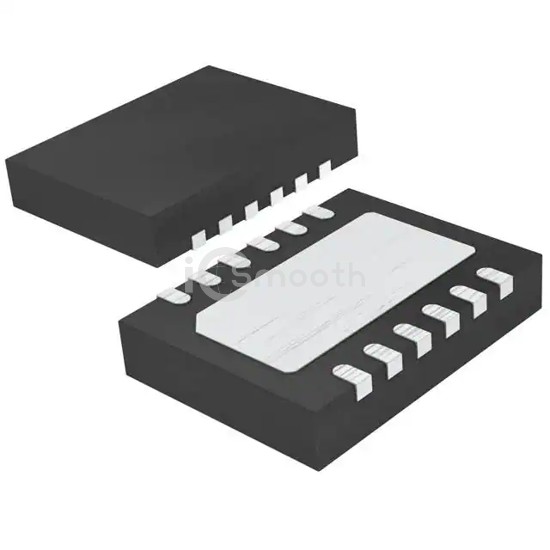

PI3A3160ZGEX

Diodes Incorporated

IC SWITCH DUAL SPDT 12TDFN

PI3A3160ZGEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 12TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFDFN Exposed Pad, number of circuits 2.

Request a Quote

In Stock: 3,656

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	450mOhm
Channel-to-Channel Matching (ΔRon)	80mOhm (Max)
Voltage - Supply, Single (V+)	1.5V ~ 4.2V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	20ns, 12ns

-3db Bandwidth	-
Charge Injection	100pC
Channel Capacitance (CS(off), CD(off))	56pF, 56pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-41dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-TDFN (3.5x3)
