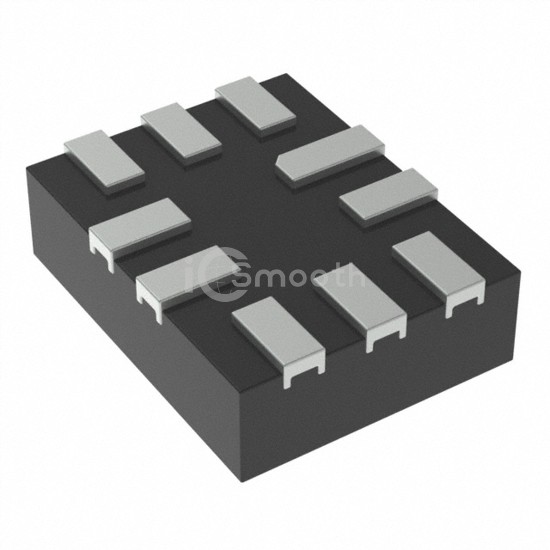

Name: PI3A268CZMEX
Brand: Diodes Incorporated
SKU: PI3A268CZMEX
Price: 1.04 USD
Availability: InStock

REF: PI3A268CZMEX Diodes Incorporated

PI3A268CZMEX

Diodes Incorporated

IC SWITCH DUAL SPDT 10UQFN

PI3A268CZMEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 1,179

Tiered Pricing USD

1+ $1.0400 —

10+ $0.7470 -28%

25+ $0.6744 -35%

100+ $0.5947 -43%

250+ $0.5567 -46%

500+ $0.5337 -49%

1,000+ $0.5148 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	400mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	40mOhm
Voltage - Supply, Single (V+)	1.65V ~ 4.3V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	50ns, 50ns

-3db Bandwidth	85MHz
Charge Injection	52pC
Channel Capacitance (CS(off), CD(off))	21pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-80dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.8x1.4)
