Name: PI3A223ZMEX
Brand: Diodes Incorporated
SKU: PI3A223ZMEX
Price: 1.12 USD
Availability: InStock

REF: PI3A223ZMEX Diodes Incorporated

PI3A223ZMEX

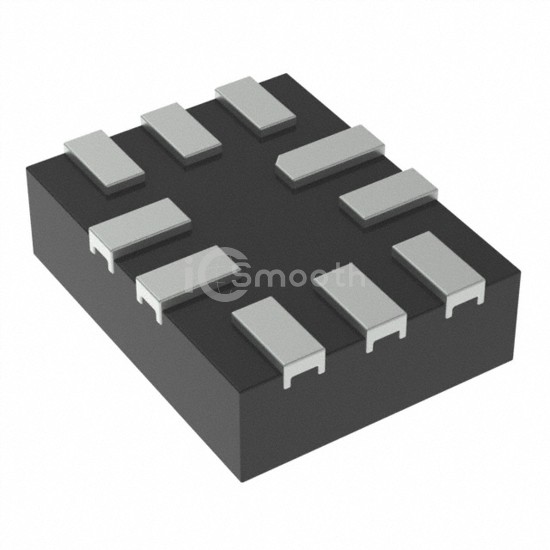

IC SWITCH DUAL SPDT 10UQFN

PI3A223ZMEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC SWITCH DUAL SPDT 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 5,517

Tiered Pricing USD

1+ $1.1200 —

10+ $0.8050 -28%

25+ $0.7280 -35%

100+ $0.6427 -43%

250+ $0.6021 -46%

500+ $0.5776 -48%

1,000+ $0.5574 -50% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	750mOhm
Channel-to-Channel Matching (ΔRon)	50mOhm (Typ)
Voltage - Supply, Single (V+)	1.65V ~ 4.2V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	13ns, 38ns (Typ)

-3db Bandwidth	84MHz
Charge Injection	50pC
Channel Capacitance (CS(off), CD(off))	20pF, 20pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-90dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFQFN
Supplier Device Package	10-UQFN (1.8x1.4)
