Name: PI2SSD3212NCE
Brand: Diodes Incorporated
SKU: PI2SSD3212NCE
Availability: InStock

REF: PI2SSD3212NCE Diodes Incorporated

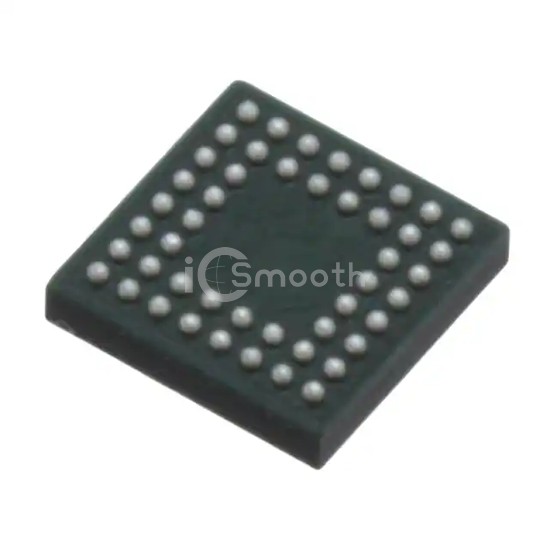

PI2SSD3212NCE

IC MUX/DEMUX 14 X 2:1 48TFBGA

PI2SSD3212NCE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC MUX/DEMUX 14 X 2:1 48TFBGA. Key specifications: mounting type Surface Mount, package / case 48-TFBGA, number of circuits 14.

Datasheet Request a Quote

In Stock: 3,475

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	14
On-State Resistance (Max)	8Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.35V, 1.5V, 1.8V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	3.3GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	48-TFBGA
Supplier Device Package	48-TFBGA (4.5x4.5)
