Name: PI2LVD412ZHEX
Brand: Diodes Incorporated
SKU: PI2LVD412ZHEX
Availability: InStock

REF: PI2LVD412ZHEX Diodes Incorporated

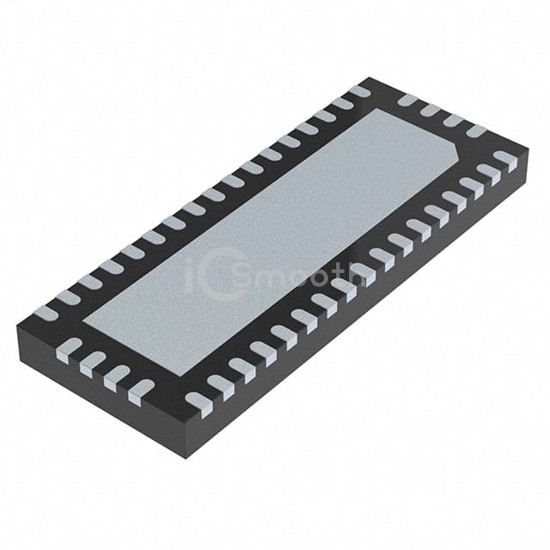

PI2LVD412ZHEX

IC MUX/DEMUX QUAD 2X1 42TQFN

PI2LVD412ZHEX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Diodes Incorporated. IC MUX/DEMUX QUAD 2X1 42TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 42-VFQFN Exposed Pad, number of circuits 4.

Datasheet Request a Quote

In Stock: 6,884

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max)	900mOhm (Typ)
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.5V ~ 2V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	8ns, 4ns

-3db Bandwidth	1.8GHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-68dB @ 10MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	42-VFQFN Exposed Pad
Supplier Device Package	42-TQFN (9x3.5)
