GBJ1504-F

In Stock: 3,130

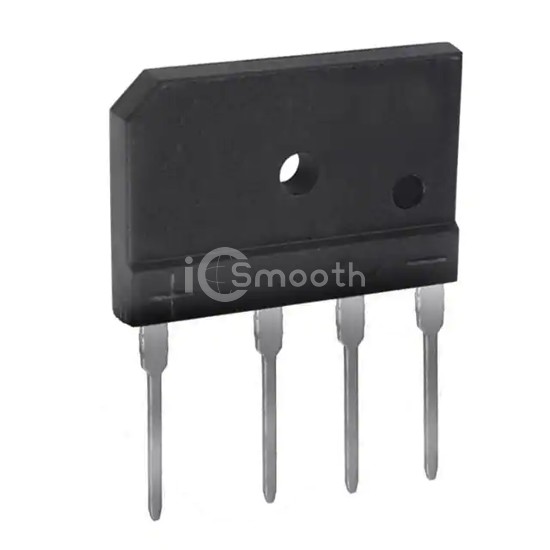

GBJ1504-F - Diodes Incorporated - Diodes - Bridge Rectifiers
REF: GBJ1504-F Diodes Incorporated
GBJ1504-F

Diodes Incorporated

BRIDGE RECT 1PHASE 400V 15A GBJ

GBJ1504-F is a Diodes - Bridge Rectifiers manufactured by Diodes Incorporated. BRIDGE RECT 1PHASE 400V 15A GBJ. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case 4-SIP, GBJ.

Datasheet Request a Quote

In Stock: 3,130

Tiered Pricing USD
1+ $2.2100 —
15+ $1.3207 -40%
105+ $0.9591 -57%
510+ $0.7700 -65%
1,005+ $0.7091 -68%
2,010+ $0.6566 -70%
5,010+ $0.6300 -71% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)400 V
Current - Average Rectified (Io)15 A
Voltage - Forward (Vf) (Max) @ If1.05 V @ 7.5 A
Current - Reverse Leakage @ Vr10 µA @ 400 V
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case4-SIP, GBJ
Supplier Device PackageGBJ
