Name: DPS1135FIA-13
Brand: Diodes Incorporated
SKU: DPS1135FIA-13
Price: 1.32 USD
Availability: InStock

REF: DPS1135FIA-13 Diodes Incorporated

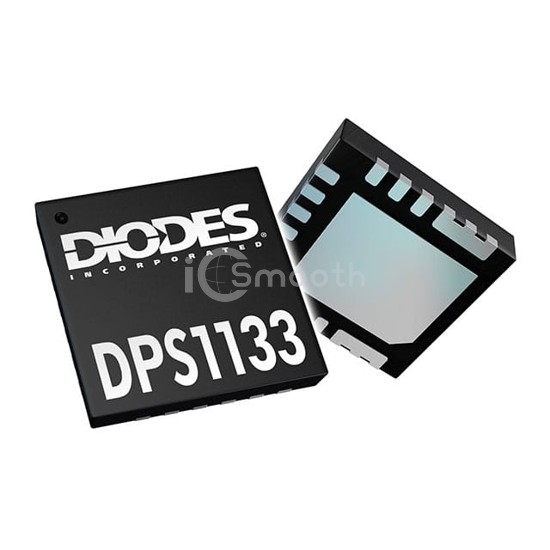

DPS1135FIA-13

Diodes Incorporated

IC PWR SWITCH N-CH V-QFN4040-17

DPS1135FIA-13 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CH V-QFN4040-17. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 17-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,593

Tiered Pricing USD

1+ $1.3200 —

10+ $0.9600 -27%

25+ $0.8700 -34%

100+ $0.7706 -42%

250+ $0.7232 -45%

500+ $0.6947 -47%

1,000+ $0.6711 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4.5V ~ 24V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	5A
Rds On (Typ)	30mOhm
Input Type	Non-Inverting
Features	Load Discharge, Slew Rate Controlled, Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	V-QFN4040-17
Package / Case	17-VFQFN Exposed Pad
