Name: DML3009LDC-7
Brand: Diodes Incorporated
SKU: DML3009LDC-7
Price: 1.71 USD
Availability: InStock

REF: DML3009LDC-7 Diodes Incorporated

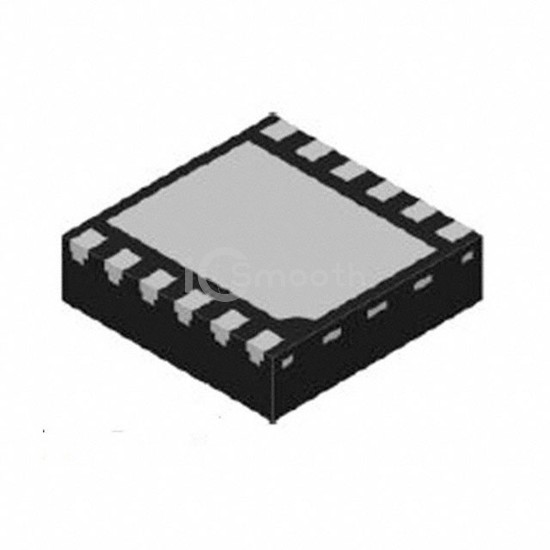

DML3009LDC-7

Diodes Incorporated

IC PWR SWITCH N-CHAN 1:1 12VDFN

DML3009LDC-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 12VDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 12-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,307

Tiered Pricing USD

1+ $1.7100 —

10+ $1.2540 -27%

25+ $1.1404 -33%

100+ $1.0149 -41%

250+ $0.9551 -44%

500+ $0.9191 -46%

1,000+ $0.8894 -48% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	20A
Rds On (Typ)	6.1mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Short-Circuit, Thermal Shutdown, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	V-DFN3030-12 (Type B)
Package / Case	12-VFDFN Exposed Pad
