Name: DML3006LFDS-7
Brand: Diodes Incorporated
SKU: DML3006LFDS-7
Price: 1.45 USD
Availability: InStock

REF: DML3006LFDS-7 Diodes Incorporated

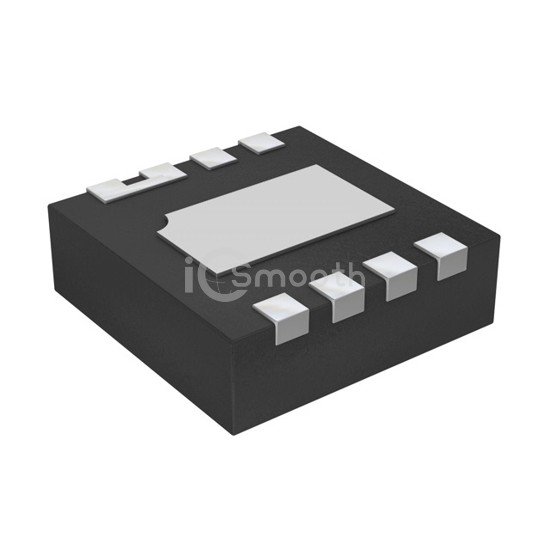

DML3006LFDS-7

Diodes Incorporated

IC PWR SWITCH N-CHAN 1:1 8VDFN

DML3006LFDS-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH N-CHAN 1:1 8VDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 3V ~ 5.5V, package / case 8-VFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,220

Tiered Pricing USD

1+ $1.4500 —

10+ $1.0610 -27%

25+ $0.9624 -34%

100+ $0.8539 -41%

250+ $0.8022 -45%

500+ $0.7711 -47%

1,000+ $0.7455 -49% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	0.5V ~ 13.5V
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V

Current - Output (Max)	10.5A
Rds On (Typ)	8mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Short-Circuit, Thermal Shutdown, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	V-DFN2020-8 (Type F)
Package / Case	8-VFDFN Exposed Pad
