BHDS1100

In Stock: 9,099

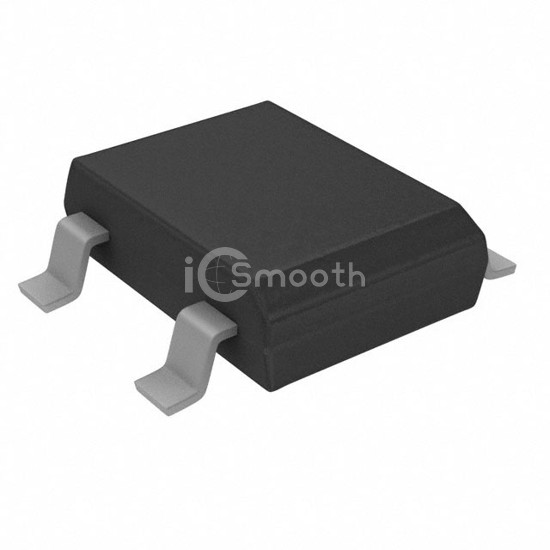

BHDS1100 - Diodes Incorporated - Diodes - Bridge Rectifiers
REF: BHDS1100 Diodes Incorporated
BHDS1100

Diodes Incorporated

PLANAR SCHOTTKY RECTIFIER HDS T&

BHDS1100 is a Diodes - Bridge Rectifiers manufactured by Diodes Incorporated. PLANAR SCHOTTKY RECTIFIER HDS T&. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,099

Tiered Pricing USD
3,000+ $0.1884 —
6,000+ $0.1746 -7%
9,000+ $0.1675 -11%
15,000+ $0.1626 -14% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeSingle Phase
TechnologySchottky
Voltage - Peak Reverse (Max)100 V
Current - Average Rectified (Io)1 A
Voltage - Forward (Vf) (Max) @ If0.85 V @ 1 A
Current - Reverse Leakage @ Vr50 µA @ 100 V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device PackageHDS
