ATS276G-PG-B-A

In Stock: 5,042

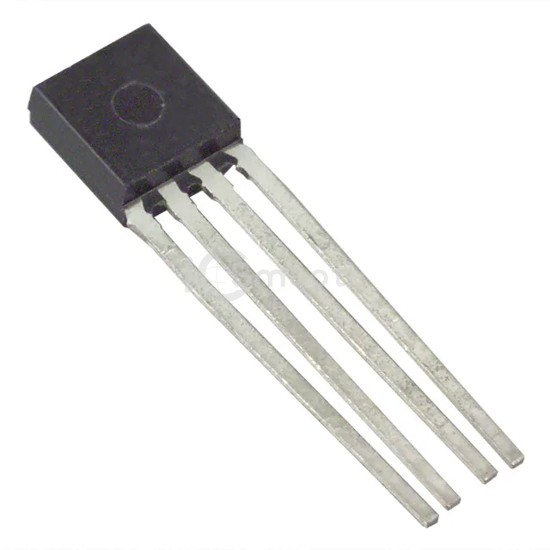

ATS276G-PG-B-A - Diodes Incorporated - Magnetic Sensors - Switches (Solid State)
REF: ATS276G-PG-B-A Diodes Incorporated
ATS276G-PG-B-A

Diodes Incorporated

MAGNETIC SWITCH LATCH 4SDIP

ATS276G-PG-B-A is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH LATCH 4SDIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C, voltage - supply 3.5V ~ 20V, package / case 4-SSIP.

Datasheet Request a Quote

In Stock: 5,042

Specifications

15 parameters
Product StatusObsolete
FunctionLatch
TechnologyHall Effect
PolarizationUnidirectional
Sensing Range5mT Trip, -5mT Release
Test Condition25°C
Voltage - Supply3.5V ~ 20V
Current - Supply (Max)25mA
Current - Output (Max)-
Output TypeOpen Collector
Features-
Operating Temperature-20°C ~ 85°C
Mounting TypeThrough Hole
Supplier Device Package4-SIP
Package / Case4-SSIP
