Name: AH1808-Z-7
Brand: Diodes Incorporated
SKU: AH1808-Z-7
Price: 0.52 USD
Availability: InStock

REF: AH1808-Z-7 Diodes Incorporated

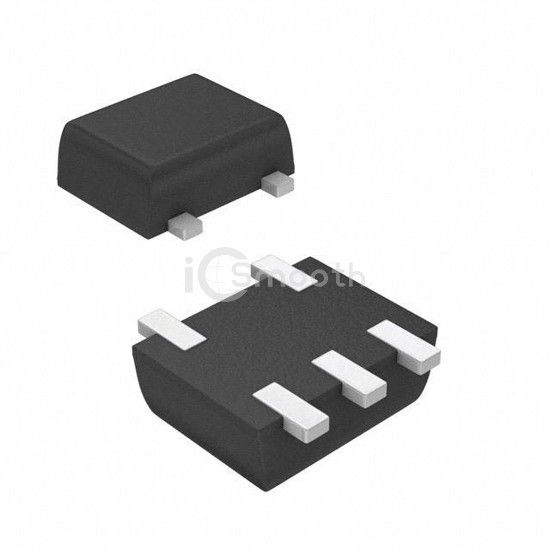

AH1808-Z-7

MAGNETIC SWITCH OMNIPOLAR SOT553

AH1808-Z-7 is a Magnetic Sensors - Switches (Solid State) manufactured by Diodes Incorporated. MAGNETIC SWITCH OMNIPOLAR SOT553. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.5V ~ 5.5V, package / case SOT-553.

Datasheet Request a Quote

In Stock: 9,795

Tiered Pricing USD

1+ $0.5200 —

5+ $0.4580 -12%

10+ $0.4330 -17%

25+ $0.4032 -22%

50+ $0.3834 -26%

100+ $0.3652 -30%

500+ $0.3286 -37%

1,000+ $0.3150 -39% BEST

Specifications

15 parameters

Product Status	Active
Function	Omnipolar Switch
Technology	Hall Effect
Polarization	North Pole, South Pole
Sensing Range	±6mT Trip, ±5mT Release
Test Condition	-40°C ~ 85°C
Voltage - Supply	2.5V ~ 5.5V
Current - Supply (Max)	16µA

Current - Output (Max)	2.5mA
Output Type	Open Drain
Features	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-553
Package / Case	SOT-553
