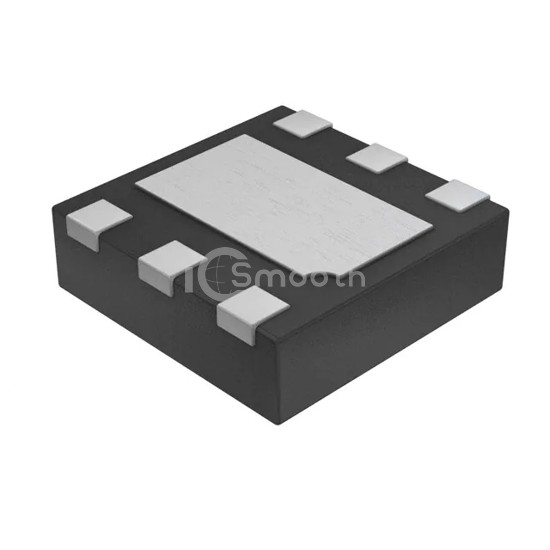

Name: AP2553AFDC-7
Brand: Diodes Incorporated
SKU: AP2553AFDC-7
Price: 0.39 USD
Availability: InStock

REF: AP2553AFDC-7 Diodes Incorporated

AP2553AFDC-7

Diodes Incorporated

IC PWR SWITCH P-CHANNEL 1:1 6DFN

AP2553AFDC-7 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Diodes Incorporated. IC PWR SWITCH P-CHANNEL 1:1 6DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,533

Tiered Pricing USD

1+ $0.3900 —

10+ $0.2730 -30%

25+ $0.2432 -38%

100+ $0.2101 -46%

250+ $0.1944 -50%

500+ $0.1850 -53%

1,000+ $0.1772 -55% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	2.1A
Rds On (Typ)	80mOhm
Input Type	Non-Inverting
Features	Load Discharge, Status Flag
Fault Protection	Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-DFN2020-6 (Type C)
Package / Case	6-UDFN Exposed Pad
